- XUNKUNER 3D Edge Finder Touch Probe, CNC XYZ ...
0 ratings
Item #:
195865572
XUNKUNER 3D Edge Finder Touch Probe, CNC XYZ Coordinate Measuring Sensor, 6mm Shank, 2.0mm Tungsten Steel Ball Tip, 2M Cable, Compatible with Mach3 &
Item #:
195865572
XCD 196
Price Details
Excluding Shipping & Custom charges ( Shipping and custom charges will be calculated on checkout )
*All items will import from US
0 ratings
Write a review
In stock
Imported from USA store
QTY:
Order now and get it around Tuesday, June 23
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Achieve high precision with repeatable positioning accuracy of less than 0.01MM.
Fast
Shipping
Free
Return*
Secure Packaging
100% Original Products
PCI DSS Compliance
ISO 27001 Certified
Note: Step Down Voltage Transformer required for using electronics products of US store (110-120). Recommended power converters Buy Now.
What Stands Out
Precision Measuring
The XUNKUNER probe offers high accuracy with a tungsten steel ball tip, ensuring precise XYZ coordinate measuring for enhanced CNC machining capabilities.
Versatile Compatibility
Compatible with popular software like Mach3 and GRBL, this edge finder simplifies integration into various CNC setups, catering to a broad range of users.
Durable Design
Constructed with a strong 6 mm shank and 2M cable, the probe ensures long-lasting use and flexibility during operations, providing excellent value for hobbyists and professionals alike.
Product Details
- 〖 Parameter〗 Voltage: DC5-24V, repeatability accuracy: 0.01 mm/ 0.0004 in, feedrate: 50-200 mm/min, over travel protection distance: X- ±4mm/0.16 in, Y- ±4mm/ 0.16 in, Z- 2mm/ 0.08in, XY axis trigger force: 0.5-0.82N, Z axis trigger force: 2.7N. (Note: ensure the sensitivity of the tool setter is higher than this edge finder/trigger force less than 2.7N if working with a tool setter)

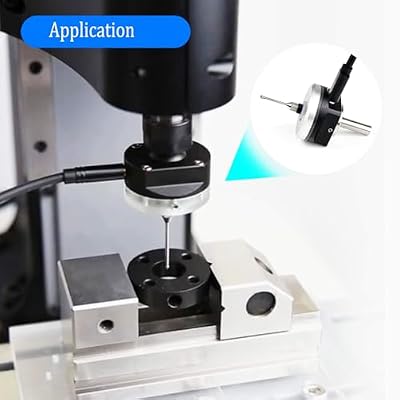

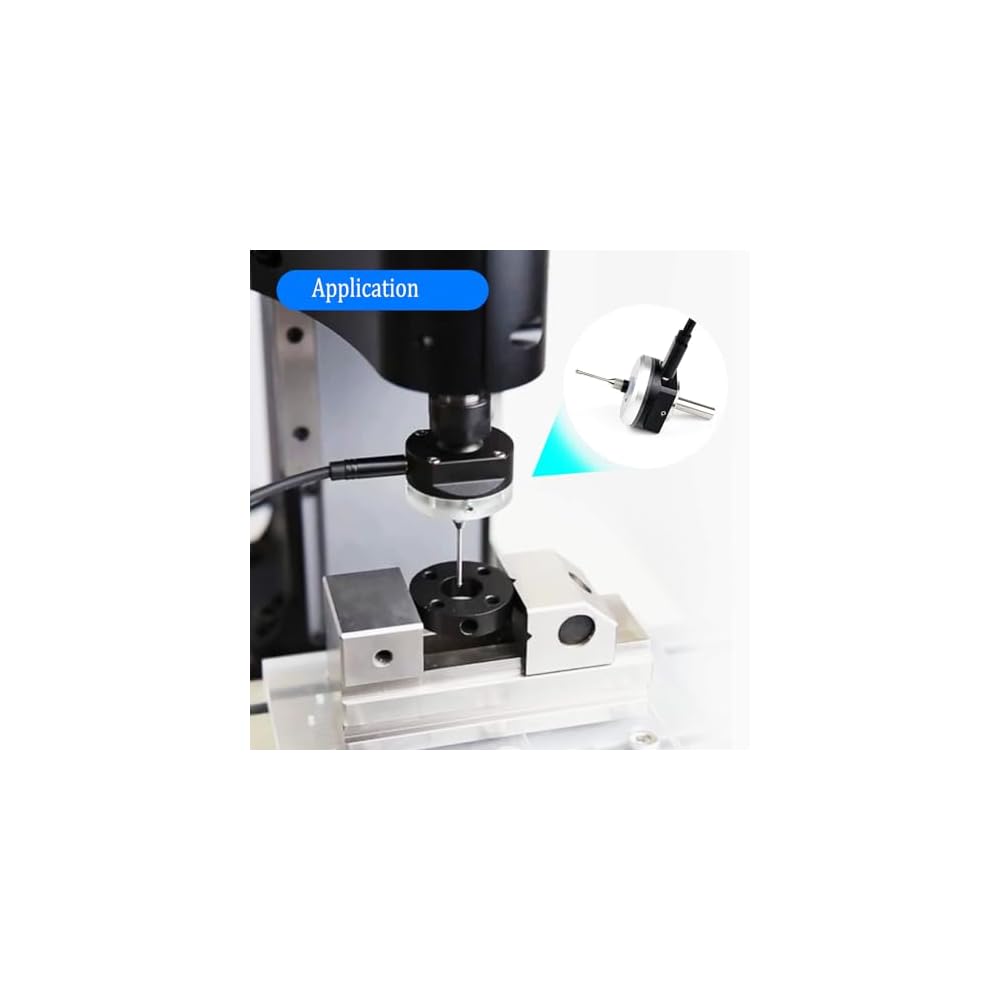

- 〖 Application〗The CNC probe is designed for wide DIY applications,Suitable for GRBL control board and Mach3 ect systems . By connecting the CNC signal input port (tool setting port), It can achieve fast zero point acquisition, surface flatness acquisition, and measurement of workpiece geometry, such as edges, holes, grooves, screws, angles and angles, workpiece scanning and digitization, effectively avoiding secondary clamping of workpieces during the processing. (Hint: Not recommended for industrial use)
- 〖Advantages〗 The touch probe uses high-quality electronic equipment to achieve high measurement accuracy and high repeatability. Using frosted alumina alloy and a flat anti rolling non-circular design, the touch probe is protected from falling off. In addition, the probe can be modified to a tool setter through the tool setter base and flat tip
- 〖High Quality 〗 The shell is made of black fine frosted alumina alloy, with a flat anti rolling design; The probe is made of stainless steel and the ball head is made of tungsten steel ball, which has the advantage of wear resistance (note: the default concentricity is fine tuned to within 0.05
- 〖NOTE〗Please measure and adjust it yourself after receiving the package. Be sure to use an ER11 spring chuck with AAA or above, otherwise it will affect the concentricity of the probe tip
| Power Source | Corded Electric |
| Minimum Operating Voltage | 5 Volts (DC) |
| Compatible Devices | Mach3, GRBL |
| Style Name | 3D Edge Finder Touch Probe |
| Color | Black |
| Brand Name | XUNKUANER |
| Manufacturer | XUNKUNER |
| Part Number | V5-PROBE |
| Included Components | 1pc cnc probe +cable |
| Unit Count | 1.0 Count |
| Brand | XUNKUANER |
| Style | 3D Edge Finder Touch Probe |
| Min. Operating Voltage | 5 Volts (DC) |
| Item Weight | 1 lbs (450 grams) |

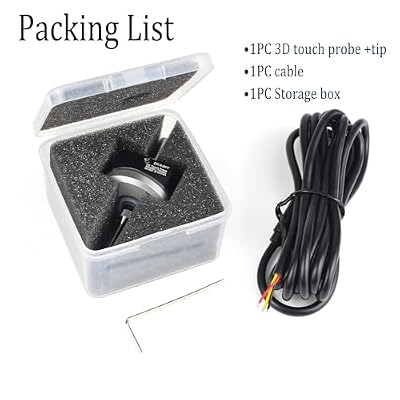

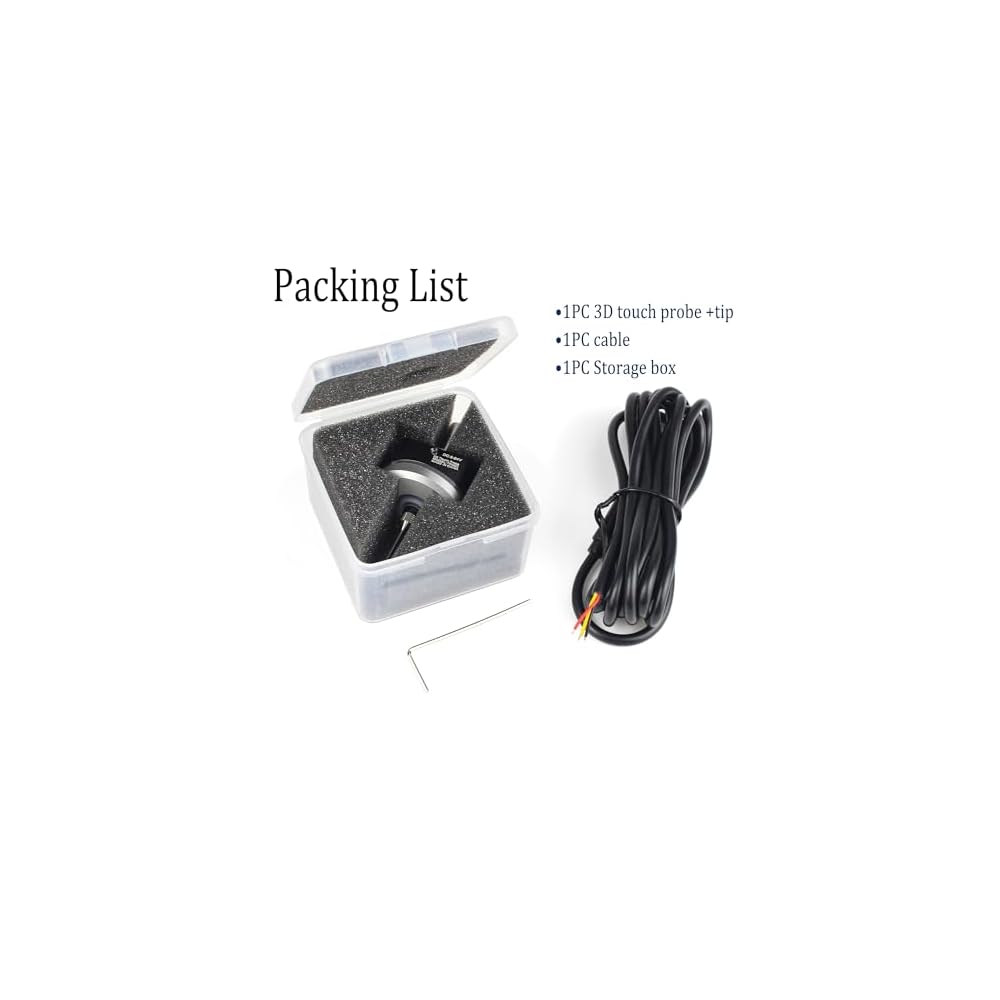

What's in the box
1pc cnc probe +cable
Who Should Buy?
-
CNC Machinists
Ideal for CNC machinists seeking precision in their setups and measurements.
-
Hobbyist Users
Perfect for hobbyist CNC users who require an affordable and easy-to-use probing tool.
-
Small Workshops
Great for small workshops needing a reliable tool to improve efficiency in edge detection.
-
Large Industries
Not suitable for larger industrial environments that require more advanced probing technology.
-
Untrained Operators
Not recommended for users without CNC operation training, as it requires some level of expertise.
-
Budget Machines
May not be effective with lower-end machines that lack compatibility with Mach3 or GRBL.
Product Description
Have any Query? Chat with us
Customer Questions & Answers
-
Question:
Do I need to turn on the spindle speed when using the probe?
Answer: No, there is absolutely no need to turn on the spindle speed. -
Question:
Why does the concentricity vary each time I install the probe?
Answer: The variation is due to your ER chuck spring clip, which may not ensure 100% uprightness. -
Question:
What systems are compatible with this touch probe?
Answer: The touch probe is compatible with GRBL control boards and Mach3 systems.
XUNKUANER Test Indicators Editorial Review
No editorial reviews found
Customer Reviews & Ratings
1 customers ratings
-
5 Star
100%
-
4 Star
0%
-
3 Star
0%
-
2 Star
0%
-
1 Star
0%
Review this product
Share your thoughts with other customers
Product Price History
Important information
- Limitations : For products shipped internationally, please note that any manufacturer warranty may not be valid; manufacturer service options may not be available; product manuals, instructions, and safety warnings may not be in destination country languages; the products (and accompanying materials) may not be designed in accordance with destination country standards, specifications, and labeling requirements; and the products may not conform to destination country voltage and other electrical standards (requiring use of an adapter or converter if appropriate). The recipient is responsible for assuring that the product can be lawfully imported to the destination country. When ordering from Ubuy or its affiliates, the recipient is the importer of record and must comply with all laws and regulations of the destination country.
- Not all the products listed on Ubuy are for sale, as Ubuy is a global search engine. Products are subject to export/trade regulations.
XCD 196
Order now and get it around Tuesday, June 23
This item is not restrict in my country.(Please click on above link if this item is not restrict in your country, So our team will review and allow.)
QTY:
Secured transaction
Ubuy works hard to protect your security and privacy. Our advanced payment security system ensures confidentiality by encrypting your information during transmission using AES (Advanced Encryption Standards) and SSL (Secure Socket Layer) protocols. Your payment details are 100% secure as we do not share your payment details with third party sellers.
Our Top Logistics Partners
Fastest cross-border delivery
Features & Benefits
- High precision touch probe designed for DIY CNC applications.
- Repeatability accuracy of less than 0.01MM ensures reliable results.
- Compact design featuring high-quality frosted alumina alloy construction.
- Waterproof with silicone o-ring seals for durability.
- Compatible with GRBL and Mach3 systems for versatile usage.
- Includes all necessary components: probe, stainless steel tip, cable, and storage box.
